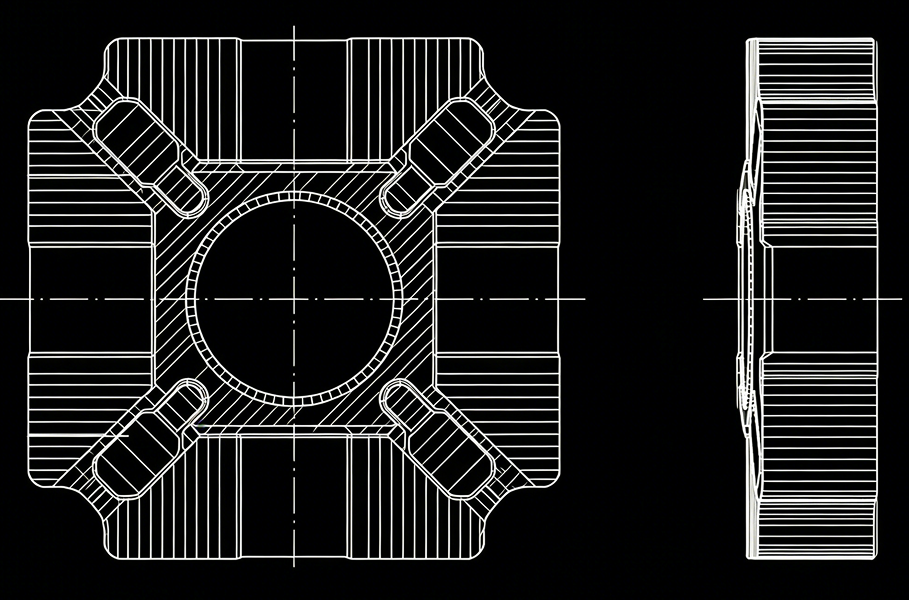

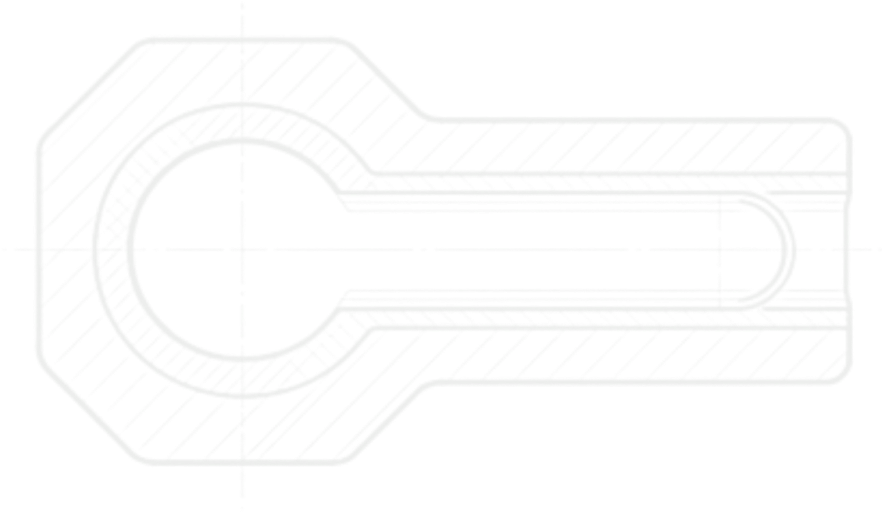

Drawing Customization
We Support
Process Flow
Customers can provide CAD drawings, 3D models, or technical parameters. Our engineering team will conduct technical evaluation and structural analysis based on customer requirements.
After confirming customer requirements, our engineering and technical team will optimize the mold structure to improve processing efficiency and product stability.
Different materials directly affect the wear resistance, service life, and processing stability of the mold. We recommend the most suitable mold materials.
We use advanced processing equipment and mature manufacturing processes to perform high-precision machining on molds to ensure product quality and stability.
To improve the wear resistance and service life of molds, we provide a variety of advanced surface treatment technologies.
Before product delivery, we conduct strict quality inspections to ensure that every mold product meets technical standards.
Material Features
Made from natural diamond with extremely high hardness, smooth surface and excellent wear resistance.Applicable Scenarios
Used for ultra-fine wire drawing such as copper wire, precious metal wire and high-precision electronic wire.Core Advantages
Processing Equipment
Nano Coating Equipment
Automatic Die Grinding Machine
CVD Deposition Equipment
High-Precision Measuring Instrument
Laser Marking Machine
Surface Treatment
Process Features
A high-hardness diamond coating is formed on the die surface through chemical vapor deposition (CVD).Core Advantages
Applicable Industries
Advanced CVD Nano Diamond Coating
Related Products

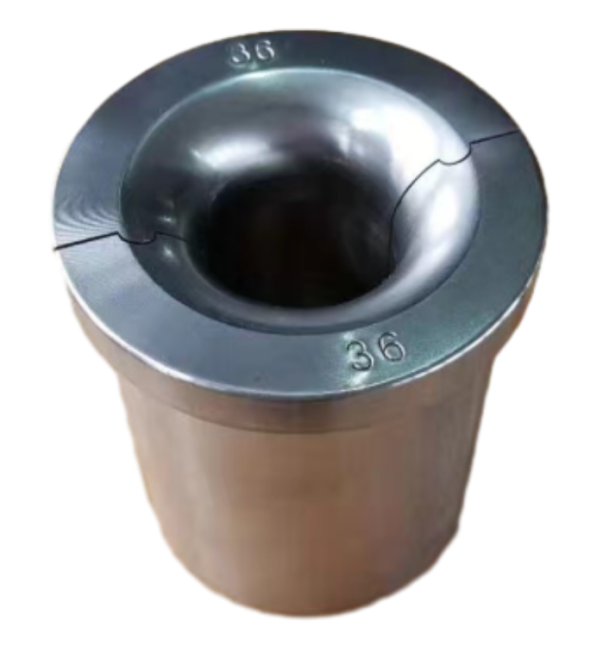

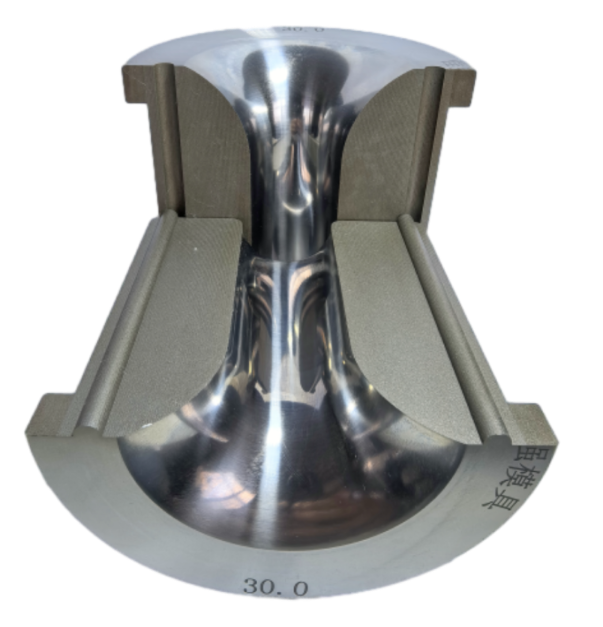

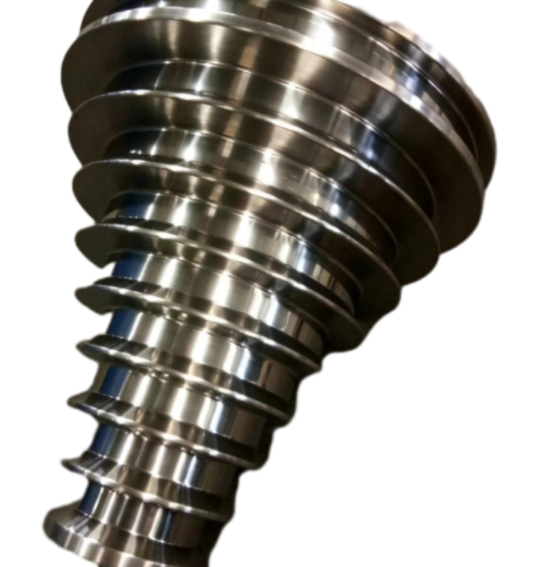

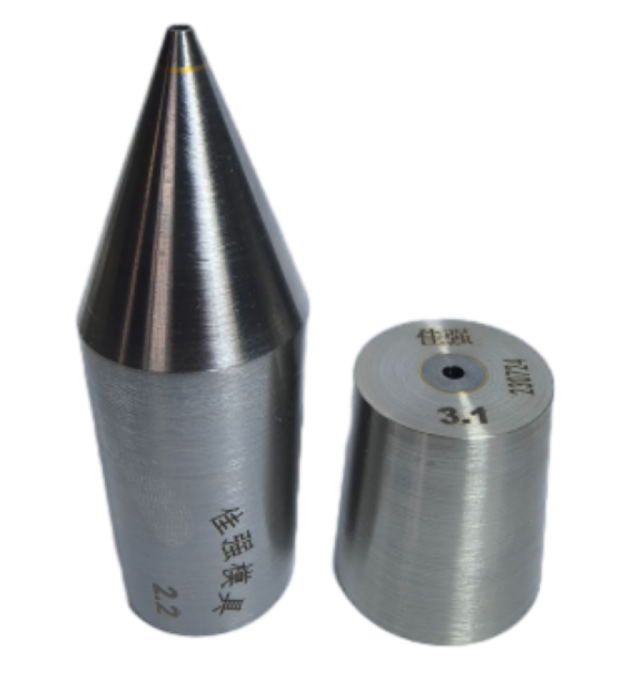

Extrusion Die
Extrusion Die
Extrusion Die
Extrusion Die
Extrusion Die
Extrusion Die
Extrusion Die
FAQ
We specialize in the R&D and manufacturing of products such as wire drawing dies, Polycrystalline Diamond (PCD) dies, natural diamond dies, cemented carbide dies, nano-coated dies, cable extrusion dies, shaped dies, cold-forming dies, and nail-making dies, meeting the application requirements of various industrial sectors.
Yes, we offer OEM and ODM customization services. Clients can provide CAD drawings, STEP/STP files, PDF technical drawings, or relevant technical specifications; our engineering team will conduct a professional assessment and provide structural optimization and production solutions tailored to specific requirements.
We offer a wide range of die materials, including cemented carbide, polycrystalline diamond (PCD), natural diamond, synthetic single-crystal diamond, and nano-coated materials. We recommend the most suitable material solution based on factors such as the material being processed, wire diameter specifications, production speed, and precision requirements.
Our molds are widely used in industries such as wire and cable manufacturing, metal wire processing, fastener production, precision electronics manufacturing, automotive component processing, and special profile forming, meeting the demands of diverse production scenarios.
Each mold undergoes rigorous quality inspections prior to shipment—including checks for dimensional accuracy, surface quality, concentricity, and roundness, as well as performance testing—to ensure compliance with the customer's technical standards and production requirements.
Delivery lead times depend on the product type, technical specifications, and order quantity. Standard molds can typically be delivered within 5–10 working days, while custom molds generally require 10–20 working days; the exact timeframe will be confirmed based on the specific circumstances of the project.
Yes. For custom projects, we offer sample production and testing services. Mass production is arranged only after the client confirms that the product's dimensions, performance, and operational results meet their requirements, thereby minimizing procurement risk.
We offer full support. Our mold products have been exported to numerous countries and regions—including Europe, Southeast Asia, the Middle East, and South America—and we possess extensive experience in international trade, enabling us to assist clients with export shipping and related trade procedures.
Our engineering team will recommend the most cost-effective and stable mold materials and surface treatment solutions, taking into account your processing materials, wire diameter range, production speed, precision requirements, and expected service life.
Yes. We can perform measurements and analysis based on samples provided by the client, generate the corresponding production drawings and technical specifications, and provide professional custom mold services.
Jiaqiang Mold possesses extensive experience in mold manufacturing, advanced machining and inspection equipment, a comprehensive quality control system, and a professional technical team. We are dedicated to providing global clients with one-stop mold solutions—covering everything from design, material selection, and machining to inspection and delivery—and have earned our customers' trust through consistent quality and efficient service.
